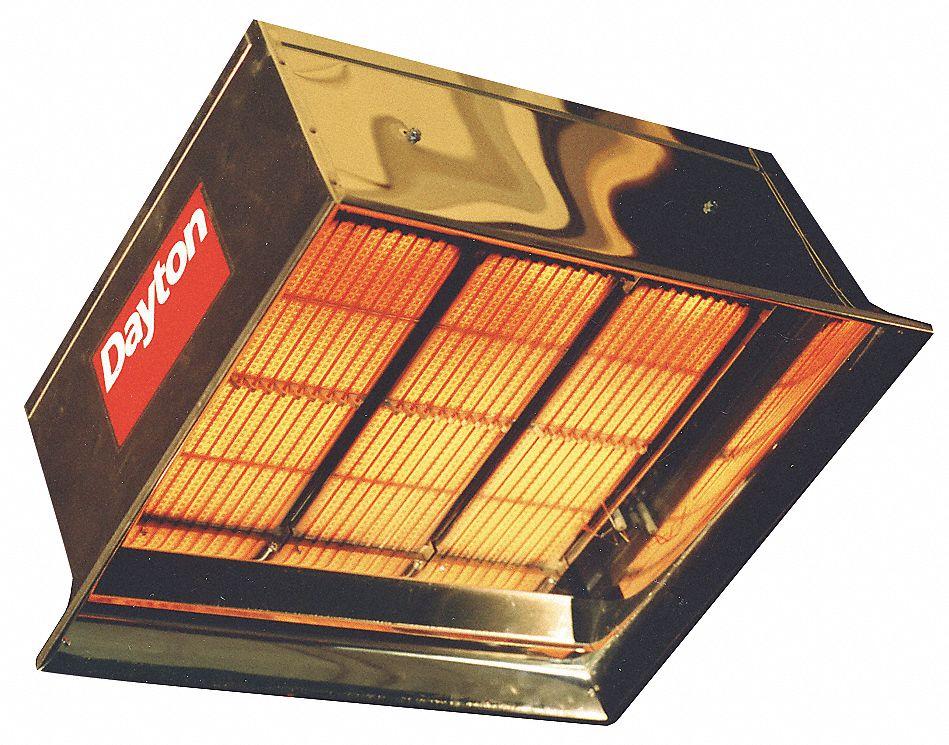

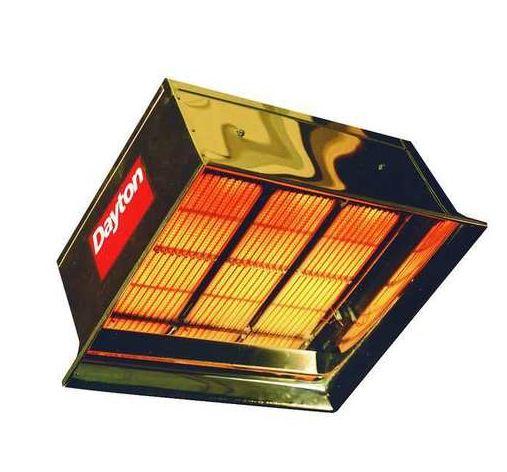

DAYTON 5VD65 Commercial NG Gas Infrared Flat Panel Heater 90,000 BtuH Input 22 1/2 in H x
$118.27
Skip to product information
DAYTON 5VD65 Commercial NG Gas Infrared Flat Panel Heater 90,000 BtuH Input 22 1/2 in H x
$118.27
Taxes included.
Shipping calculated at checkout.
Product Type Suspended Infrared Flat Panel Heater, Fuel Type Natural Gas, Heating Capacity Input 90,000 BtuH, Min. Mounting Height 16 to 18 ft, Floor Coverage @ Minimum Mounting Height 20 ft x 20 ft, Overall Height 22 1/2 In, Overall Width 26 5/8 In, Overall Depth 15 1/4 in, Mounting Height 18 to 20 ft, Typical Coverage @ Mounting Height 24 ft x 24 ft, Mounting Location Ceiling, Mounting Type Chain Suspension, For Use Outdoors Indoor Use Only, Control Voltage 24 V AC, Frequency 60 Hz
- Item Type: Gas Infrared Flat Panel Heater
- DAYTON
- Manufacturer Part Number: 5VD65
- Item: Gas Infrared Flat Panel Heater
- Width: 26 5/8 in
- Gas Type: NG
- BtuH Input: 90,000
- Height: 22 1/2 in
- Depth: 15 1/4 in
- Includes: Chain Hanging Set
- Radiant Surface: 255 sq in
- Clearance to Combustibles Side: 48 in
- Floor Dia. @ Mounting H: 20-28 ft @ 16-18 ft
- Hz: 60
- Clearance to Combustibles Behind 30 in
- Typical Sq. Ft. Coverage @ Mtg. Ht.: 575-785 @ 16-18 ft
- Heater Voltage: 24V AC
- Gas Inlet: 1/2 in NPT
- Clearance to Combustibles Top: 42 in
- Clearance to Combustibles Below/Front: 98 in
- Heating Area: 576 sq ft
- Ignition Type: Direct Spark
- Standards: CSA Certified
- Overall Height: 22 1/2 in
- Overall Width: 26 5/8 in
- Heat Output: 90,000 BtuH
- Gas Connection Type: NPT
- Product Type: Suspended Infrared Flat Panel Heater
- Radiant Surface Area: 255 sq in
- Overall Dimensions - H x W x D: 22 1/2 in x 26 5/8 in x 15 1/4 in
- Venting: Vent-Free
- Clearance to Combustibles - Top x Below x Sides: 42 in x 98 in x 48 in
- Floor Coverage @ Minimum Mounting Height: 20 ft x 20 ft
- Thermostat Included: No
- Frequency: 60 Hz
- Fuel Consumption: 0.865 thm/hr
- Overall Depth: 15 1/4 in
- Control Voltage: 24 V AC
- Mounting Height: 18 to 20 ft
- Typical Coverage @ Mounting Height: 24 ft x 24 ft
- Fuel Type: Natural Gas
- Min. Mounting Height: 16 to 18 ft
- Heating Capacity Input: 90,000 BtuH
- Mounting Location: Ceiling
- Element Type: Ceramic Tile
- Heating Method: Infrared
- Reflector Material: Highly Polished Aluminum
- For Use Outdoors: Indoor Use Only
- Gas Connection Size: 1/2 in
- Operating Temperature: 1,780 Degrees F
