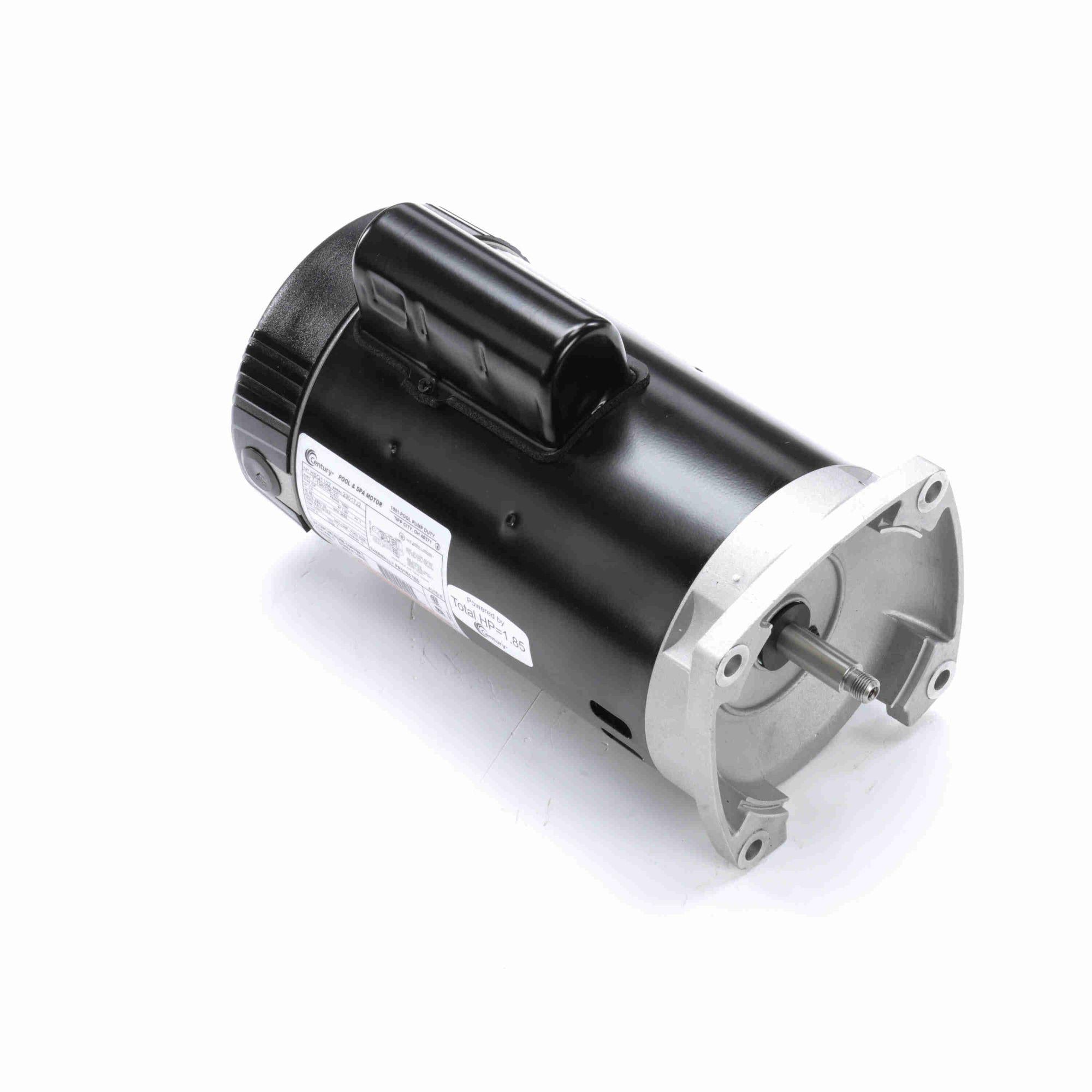

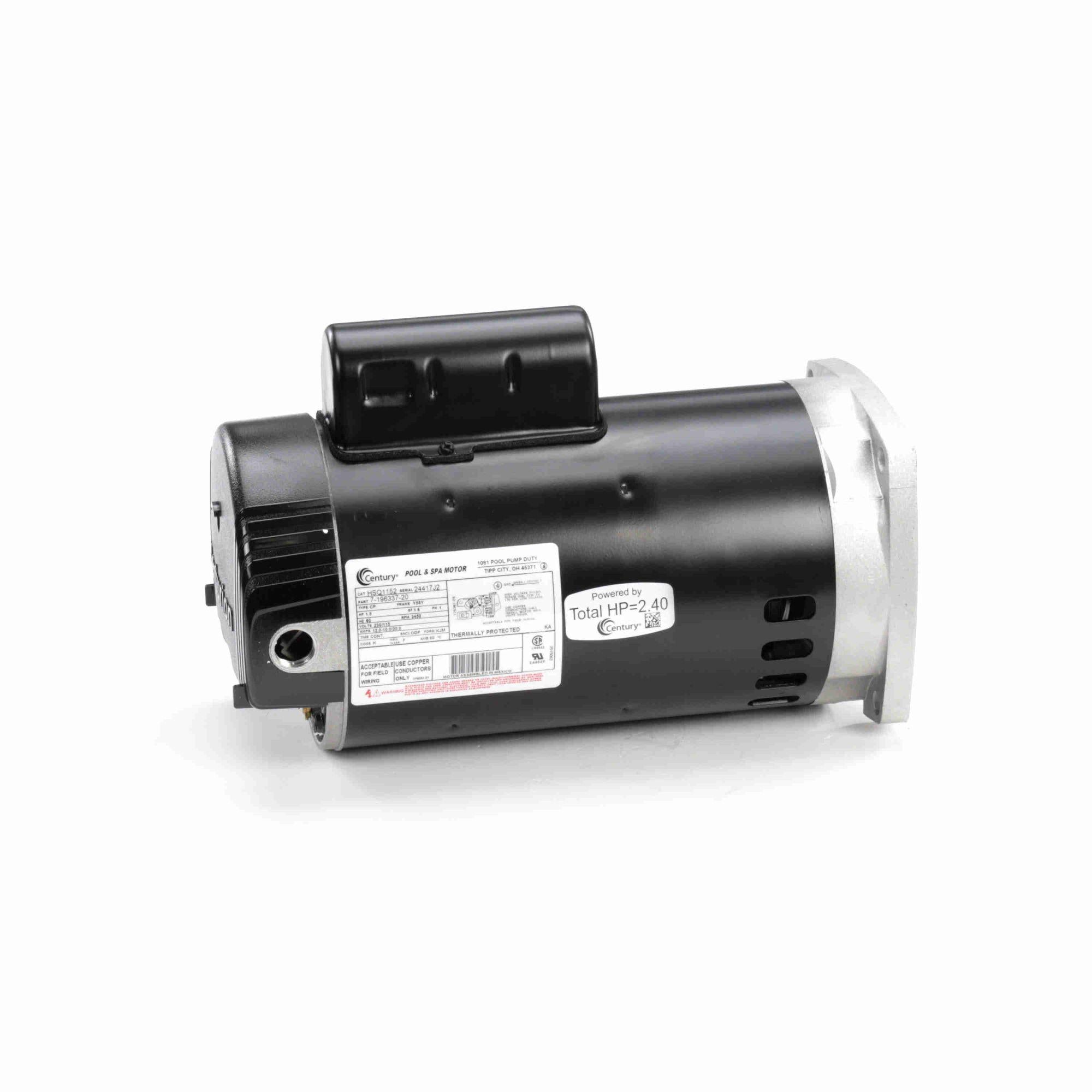

1.5 hp square flange full-rated replacement pool and spa pump motor
$89.00
Skip to product information
1.5 hp square flange full-rated replacement pool and spa pump motor
$89.00
Taxes included.
Shipping calculated at checkout.
Shop this robust motor to make your maintaining work use. Excellent for use in homes or facilities such as swimming pools, cellars, garden ponds or flooded roads. Longevity will save you money in the long run. Product Features: Energy-efficient pool pump motor. Stainless steel shaft for corrosion protection. Motor includes a sealed ball bearing. Capacitor start/capacitor run. Pump motor has a threaded shaft that allows for convenient and direct mounting. Additional Features: Output HP: 1.5 Hp. Frequency: 60 Hz. Current: 12.0-10.0/20.0 A. Service factor: 1.6. Output KW: 1.1 kW. Voltage: 115 V, 208-230 V. Speed: 3450 rpm. Poles: 2. Phase: 1. Insulation class: F. Mounting: square flange. Drive end bearing: ball. Enclosure: open drip proof. Ambient temperature: 60°C. Frame: Y56Y. Thermal protection: thermally protected. Motor orientation: horizontal. Electrical type: capacitor start, capacitor run, single or dual voltage. Rotation: counter clockwise pump end. Dimensions: 11"H x 9.5"W x 21.1"L. Shaft diameter: 0.625". Shaft extension: 0.91". Frame length: 9.38". Material(s): stainless steel. Frame: rolled steel
- Square flange horizontal pool pump motor
- Comes with stainless steel shaft for corrosion protection
- Motor includes a sealed ball bearing; counterclockwise rotation
- Threaded shaft allows for convenient and direct mounting
- 11 inches high by 9.5 inches wide by 21.1 inches long
