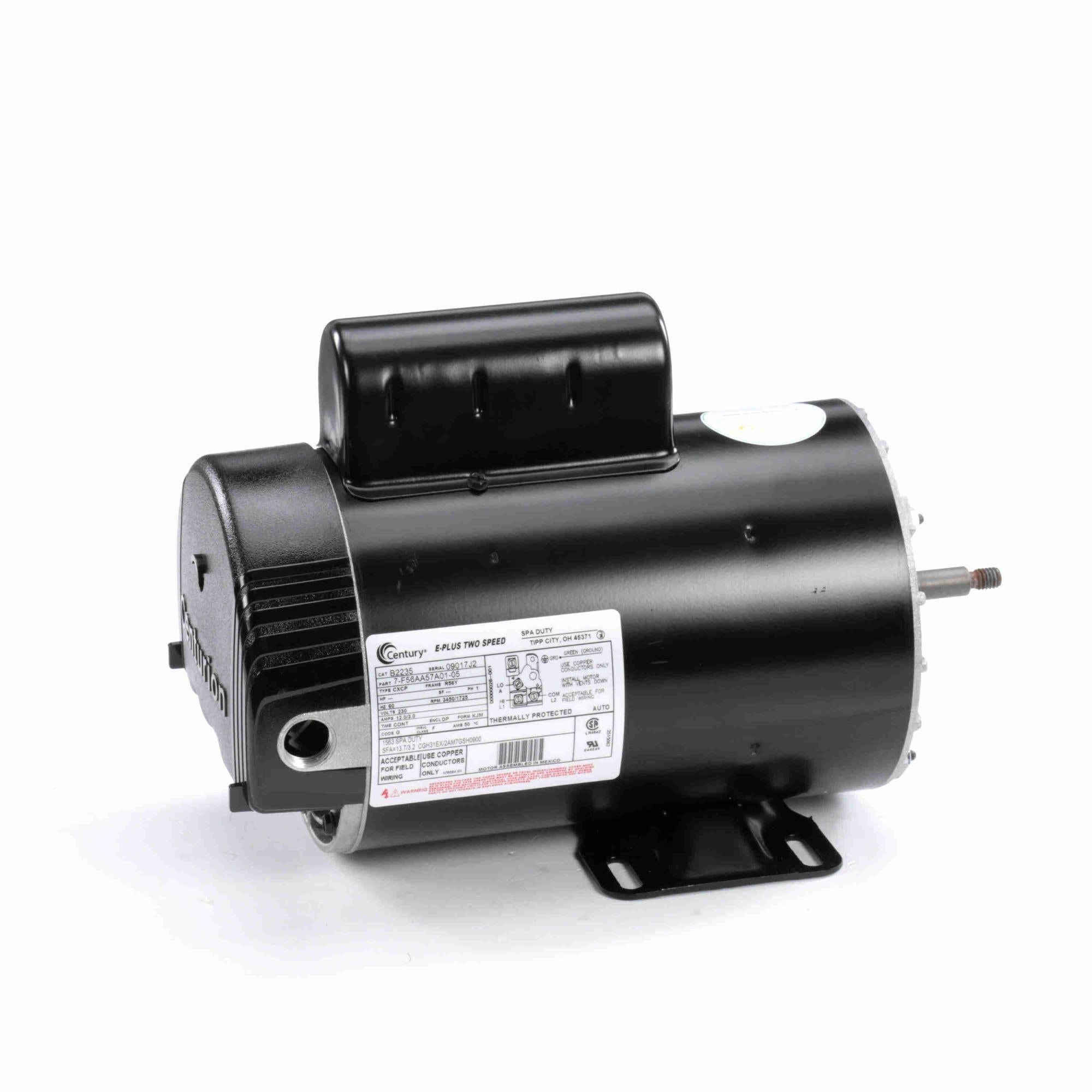

4 hp thru bolt threaded shaft horizontal pool pump motor, 1 sf
$89.00
Skip to product information
4 hp thru bolt threaded shaft horizontal pool pump motor, 1 sf
$89.00
Taxes included.
Shipping calculated at checkout.
This motor is of the finest quality and assured to get the most beneficial in terms of stability and performance. No more concern about pumping water as you have the apt device for life-long utilization. Cheap and reliable, as most customers expect!. Product Features: Two speed rigid base pool pump motor. Comes with four thru bolts on a 5.812 bolt circle. Contains open drip-proof technology. Additional Features: Output HP: 4, 1/3 Hp. Current: 12.0/3.0 A. Frequency: 60 Hz. Service Factor: 1. Duty: continuous. Frame size: R56Y. Protector: thermally protected. UL: recognized. Output KW: 3.0 kW. Voltage: 230 V. Speed: 3450/1725 rpm. Ambient temperature: 50°C. Phase: 1. Insulation Class: F. Enclosure: drip proof. CSA: Y. Electrical type: psc low speed, cap start/cap run high speed. Rotation: counterclockwise pump end. Motor orientation: horizontal. Opp drive end bearing: BALL. Shaft type: threaded. Poles: 2/4. Mounting: thru bolt. Drive end bearing: BALL. Dimensions: Frame length: 8.75". Shaft extension: 2.37". Overall length: 13.49". Shaft diameter: 0.50" . Material(s): stainless steel. Frame material: rolled steel
- Black and gray rigid base horizontal pool pump motor
- Comes with four thru bolts on a 5.812 bolt circle
- Features a thermally protected threaded type motor
- Two speed motor contains open drip proof technology
